Product Details:
|
| Material: | Molded Graphite | Length: | As Customer's Request |
|---|---|---|---|
| Size: | Customized | Grade: | Industrial Grade |
| Application: | Metal Casting, Smelting, Sintering Furnaces | Package: | Wooden Box And Vacuum Packing |
| Deliver Time: | 5-8 Work Days | Shape: | Shape Requested |
| High Light: | 10.8Gpa electrical conductivity graphite,hardness 58 pure graphite sheet,hardness 58 electrical conductivity graphite |
||

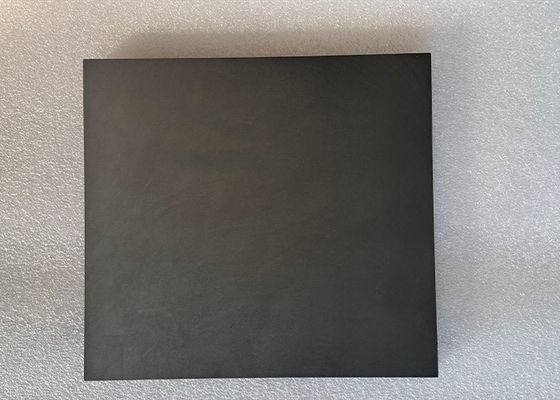

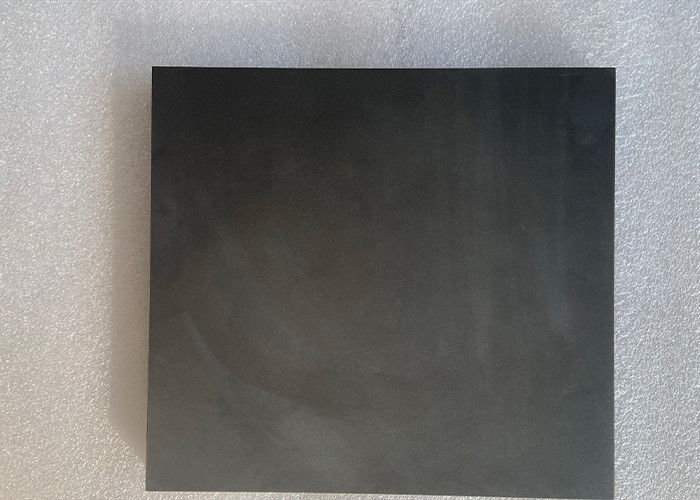

Graphite High Purity Carbon Graphite Plate Electrical Conductivity Graphite
Production details :
Graphite High Purity Carbon Graphite Plate Electrical Conductivity Graphite Features:
High density, High hardness, High temperature resistance, High pressure resistance, Corrosion resistance, Good conductivity and stability.
We can produce graphite heater, graphite crucible, graphite tray, graphite anode, graphite electrode cover, graphite fasteners, etc.
Graphite High Purity Carbon Graphite Plate Industrial Graphite Materials :
| Properties | Unit |
Numerical value |
| Bulk Density |
g/cm3 |
1.83 |
| Specific Resistance |
μΩ-m |
15 |
| Ash Content | ppm | 50 |
| Porosity | % | 17 |
| Compressive Strength | Mpa | 72.6 |
*Value might be changed due to material size
**Ash value according to purity specifications
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
