Product Details:
|
| Material: | Foreign Graphite | Technique: | Die Molded |
|---|---|---|---|
| Application: | Metallurgy Industry,Casting,Metal Melting | Porosity (%): | Normal |
| Dimensions: | Customize Production,Customer Request,Specification,customized Design | Size: | Customized |
| Package: | Wooden Box And Vacuum Packing | Deliver Time: | 10 Work Days |
| Port: | Qingdao Port | Brand: | JC |
| High Light: | 1.1um Graphite Moulds,hardness95 copper bar mold,hardness95 Graphite Moulds |
||

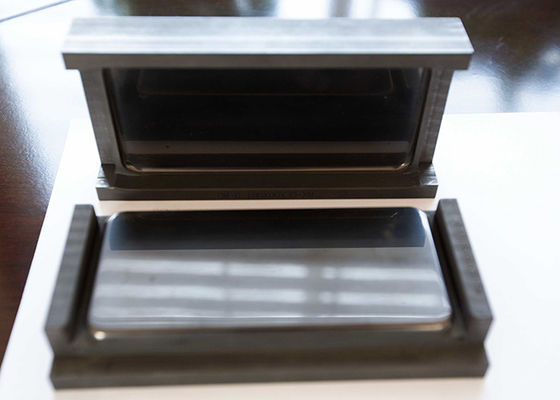

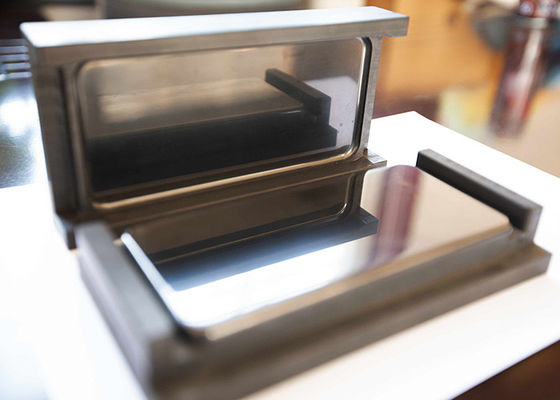

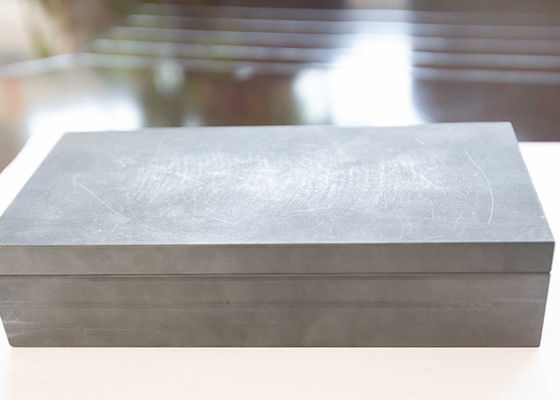

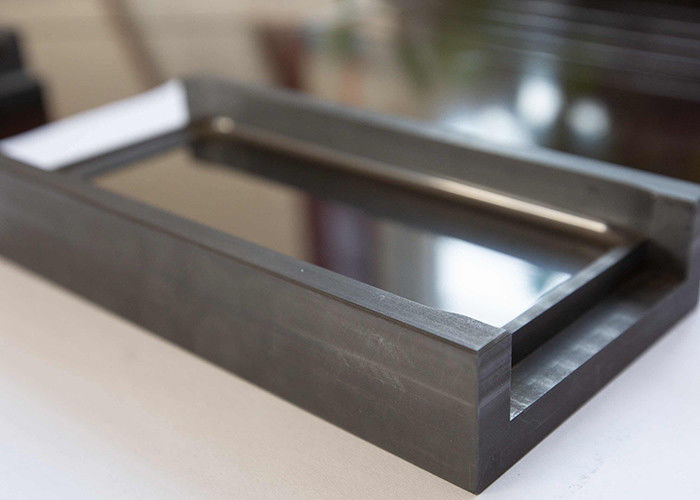

High Density Thermal Bending Graphite Mould For Mobile Phone Screen
Product details :
High Quality Thermal Bending Graphite Mould For Mobile Phone Screen Performance
1. High purity and density of graphite
2. Small particle diameter
High Quality Thermal Bending Graphite Mould For Mobile Phone Screen materials:
| Property | Unit | Value |
| Average grain aize |
µm
|
7 |
| Bulk density | g/cm3 | 1.84 |
| Open porosity | Vol.% | 10 |
| Medium pore size | µm | 1.1 |
| Permeability | cm2/s | 0.02 |
| Rockwell hardness HR5/100 | 95 | |
| Specific electrical resistivity |
µΩm
|
14 |
| Flexural strength | Mpa | 65 |
| Compressive strength | Mpa | 150 |
| Young's modulus | Mpa | 12.5*103 |
| Thermal expansion( 20-200ºC) | K-1 | 4.1*10-6 |
| Thermal conductivity(20°C) | Wm-1K-1 | 95 |
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
