Product Details:
|
| Material: | Graphite | Size: | Customized |
|---|---|---|---|
| Package: | Wooden Box And Vacuum Packing | Deliver Time: | 5-8 Work Days |
| Port: | Qingdao Port | Brand: | JC |
| High Light: | 60Mpa Graphite Moulds,60Mpa brass casting mold,hardness95 Graphite Moulds |
||

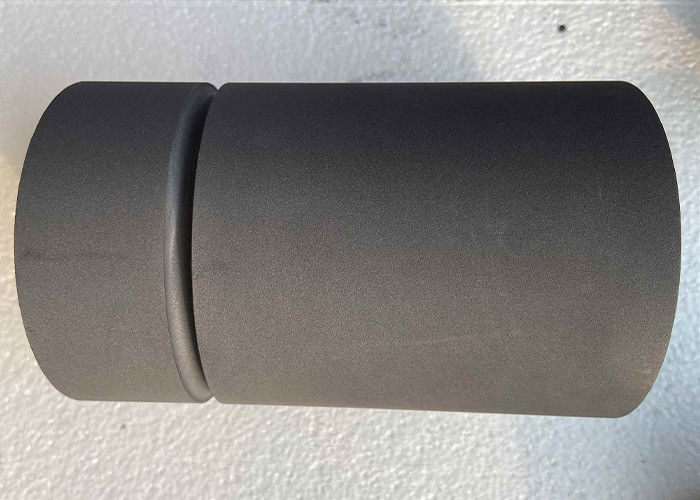

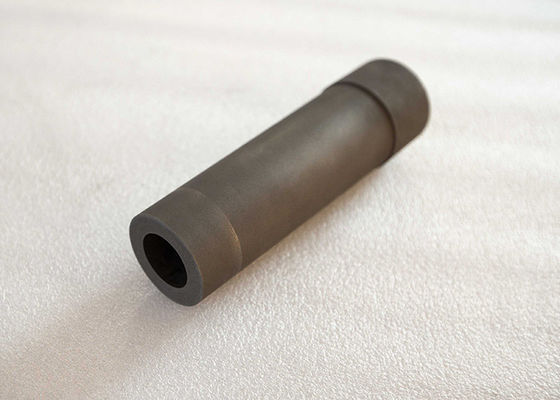

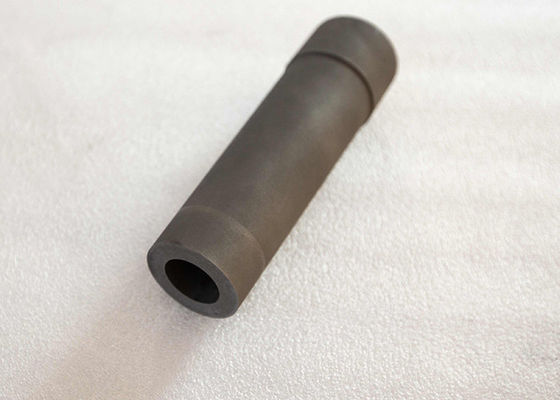

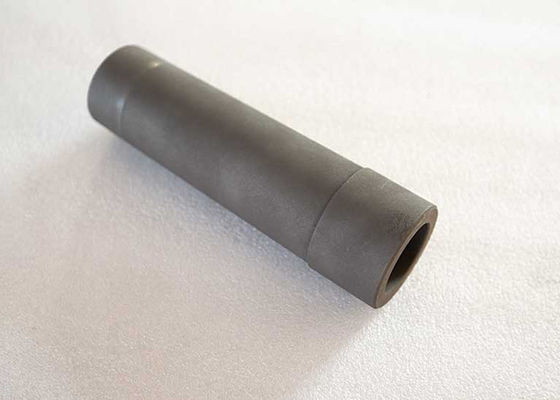

High Purity Graphite Molds For The Non-Ferrous Metal Industry
Product details :
Characteristics of our graphite mold:
1. Graphite molds are one of the most heat-resistant materials at present.
2. With good thermal shock resistance, no cracks will occur when the temperature is hot and cold
3. Excellent thermal conductivity and conductive properties
4. Good lubrication and abrasion resistance
5. Chemical stability, acid and alkali resistance and corrosion resistance, not easy to react with most metals
6. Factory supply customized graphite sintering mold Easy to process, good mechanical processing performance, can machining complex shape and high precision mold
High Purity Graphite Molds For The Non-Ferrous Metal Industry Application:
1. Brass continuous casting mould
2. Red copper continuous casting mould
3. Continuous casting mould for jewelry of gold, silver, platinum, etc.
4. Steel and stainless steel continuous casting mould.
By the shape of the cast product, it is divided into round bar mould, hollow tube mould, and shaped mould.
High Purity Graphite Molds For The Non-Ferrous Metal Industry materials:
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.83 |
| grain size | um | 10 |
| Aperture | um | 1.5 |
| Specific electrical resistivity | µΩm | 13 |
| Young's modulus (dynamic measurement) | Gpa | 11.5 |
| Flexural strength | Mpa | 60 |
| compressive strength | Mpa | 125 |
| Shore hardness | 95 | |
| Thermal expansion(20-200℃) | X10-6K-1 | 4 |
| Thermal conductivity | W/mk | 100 |
| Ash value | ppm | 5 |
*Value might be changed due to material size
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
*Value might be changed due to material size
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
